An alternative minimally invasive procedure to combact maxillary constriction with marpe-a case report.

The advent and incorporation of mini screws with conventional rapid palatal expander transforms it into a miniscrew-assisted rapid palatal expansion (MARPE) appliance [1]. Bone-anchored mini screws can help to achieve maximum skeletal expansion with a minimum amount of dental tipping [2]. Various designs have been recommended by many authors [3,4] without any dental support (exclusively bone borne), with support from teeth (teeth-bone borne) and two/ four mini screws. Stress distribution and force trajectories are directed mainly along three buttresses in the maxilla; namely zygomaticomaxillary, nasomaxillary and pterygomaxillary. Major disadvantages of conventional RPE appliances include tipping of anchor teeth [5], limited skeletal movement [6], undesirable tooth movement [7], root resorption [8], bony dehiscence’s and fenestrations as well as post expansion relapse [9]. As, conventional RPE appliances transmit the expansion forces through the teeth, alveolar bone bending and tipping of buccal segments are the major concern.

With significant modification of bone anchored screws also reduces clockwise rotation of mandible by reducing extrusion of dental components, thus affects vertical control during orthodontic therapy. MARPE appliance is beneficial in young adult patients with moderate sutural resistance for skeletal expansion and invasive surgical procedure can be avoided that provide a positive psychological impact on acceptance of orthodontic treatment.

A 17-year-old female was referred to dept. department orthodontics and dentofacial Orthopaedics. She presented with Angle Class II div-1 malocclusion, with proclined upper anteriors and increased overjet, and maxillary arch constriction. It was predicted that maxillary alveolar arch expansion through orthodontic treatment would be necessary to address the transverse discrepancy of maxillary arch. A treatment plan was established to perform miniscrew-assisted rapid palatal expansion (MARPE) treatment to correct the transverse dimension. Comprehensive blood tests, including biochemistry, complete blood count, coagulation tests, infection screening, and imaging (electrocardiogram, chest X-ray), revealed no abnormalities. There were no findings suggestive of musculoskeletal metabolic disorders were diagnosed before starting of treatment.

Fig-1

Location of Mini Screws Factors like convenient access, low risk of damage to the surrounding anatomical structures [10-12], high-quality cortical bone and thin mucosa confirming adequate stability [13,14]. makes the paramedian area (3 mm lateral to the suture in the 1^st premolar region) the most appropriate site for placement of mini screws [15-17].

Mini Screw Configuration

Dimensions of four mini screws as per the design were selected as follows;

Total 4 miniscrews (2 Anterior and  2 posterior screws): 2 x 10 mm (FavAnchorTM SAS, India) SAS, India)

The lengths were chosen considering the height of insertion slot, space between the appliance and the palate, thickness of the palatal mucosa and desired 5-7 mm of bone engagement .A pretreatment CBCT scan  of the maxillary arch was done for assessment of palatal cortical bone depth ,Intention was to achieve bicortical engagement [18], thus aiding for better stability of the mini screws as well complete bony separation of mipalatal suture. TAD placement with a conventional straight driver or an engine-mounted driver is problematic sometimes for the reasons of directional control and lack of torque to drive the implant in hard palatal bone.

A dedicated palatal driver [(L’il One, Fav Anchor TM SAS, India)] is used to maintain adequate insertion angulation and torque while placing the mini screws. This unique design of the driver makes it very convenient to place the palatal implants with great ease and precision.

Appliance design & Fabrication

An intraoral scan of the maxillary arch was taken, along with a CBCT scan of maxillary arch, which was done and converted to STL files. These files were sent to Dr Diggant THakkars' lab to fabricate direct 3d printed customised MARPE design. The size of the expansion screw was selected taking into consideration it’s close adaptation ,a hyrax screw (Leone SPE, 9 mm) was chosen. Two mini screws (2 x 12mm, Fav Anchor TM SAS, India) were placed in the paramedian region, and the posterior arms of the appliance were anchored to the molar. MARPE expander was fabricated by CAD-CAM technique, directly 3D printed with a digitalised stereolithographic model from intraoral and CBCT scan.

fig.2

Activation Protocol/ Schedule

Activation was initially done for 2 turns/ day (360° x 2) till the development of diastema, followed by 1 turn/ day till sufficient expansion has been achieved and stopped when the palatal cusp of maxillary molars and premolars had just an edge-to-edge contact of buccal cusp of lower molars and premolars . Activation schedule was followed as described (Table 1).

Treatment Objectives

The treatment objectives were to as follows:

1. To correct transverse maxillary deficiency

2. To maximizing skeletal expansion

3. To minimizing buccal tipping

4. To establish acceptable buccal occlusion and

5. To maintain sound periodontal and bone support

Treatment progress and result: after taking measurement of pretreatment and post treatment photographs and study model it can be concluded that total expansion of 4.5 mm in premolar region and 5mm in molar region was achieved respectively (Table-2). side by side orthodontic treatment was initiated, appliance was left remain intraorally for 4months to ensure midpalatal sutural callus formation , and after removal retention was given with trans-palatal arch along with thicker .019x.025 ss arch wire that is manually pre-fabricated with 2mm wider arch form in both molar and premolar region.

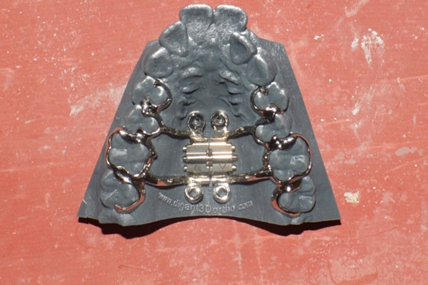

after placement of MARPE

after initial expansion is achieved

intra-oral pic after expansion

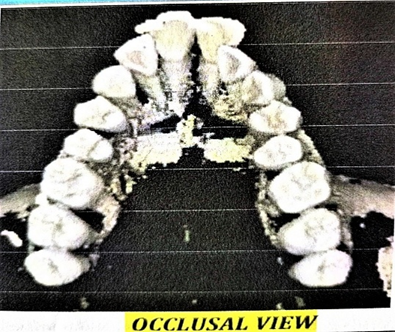

pretreatment cbct

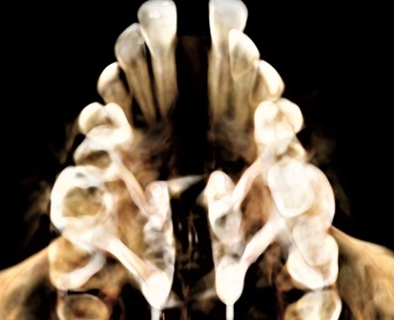

cbct of maxilla after expansion

after removal of appliance MARPE

treatment in progress with retention

Table-2

MARPE effectively achieved skeletal expansion by the separation of the midpalatal suture. Park et al. [19] reported a success rate of 84.2% in cases treated with a similar protocol. Skeletal expansion observed in the present study included the expansion of the zygomatic arch as well as nasal cavity. While the zygomatic arch expanded to a lesser extent, expansion of nasal cavity was much more evident, and thus can result in improvement of nasal breathing owing to increased air flow. Thus, by effectively increasing the nasal cavity volume, treatment with a MARPE appliance can improve the constricted airway, thus aiding in long-term stability. Garib G et al. [20], Gurgel JA et al. [21], also reported some amount of buccal tipping. Previous studies have reported greater changes in the degree of molar inclination than that of premolar inclination . The higher density of the buccal cortical bone in the maxillary canine and premolar regions might have resulted in the greater buccal inclination of the first molar in comparison with that of the first premolar [22,23]. Using a MARPE appliance, some amount of buccal tipping is inevitable, though much less as compared to RPE, as teeth are still used as anchor units alongside miniscrews. Tendency buccal tipping is directly proportional to the resistance exerted by the midpalatal suture.

Expansion achieved in the cases treated by MARPE are majorly skeletal expansion, as the appliance is a tooth-and-tissue-borne appliance. It can be used in young adults from late teens to midtwenties and exhibits a high success in this particular age group [24 ,25,26]. Skeletal maxillary expansion was effectively done with MARPE, and clinical observations suggest that MARPE prevents many of the adverse effects of RPE and should be considered as a preferred and effective alternative to the invasive procedure like surgical skeletal expansion.
